Top Fix Rise And Fall Arm

Rise & Fall Top Rafter In 316 Stainless Steel (Arm Only)

£17.00

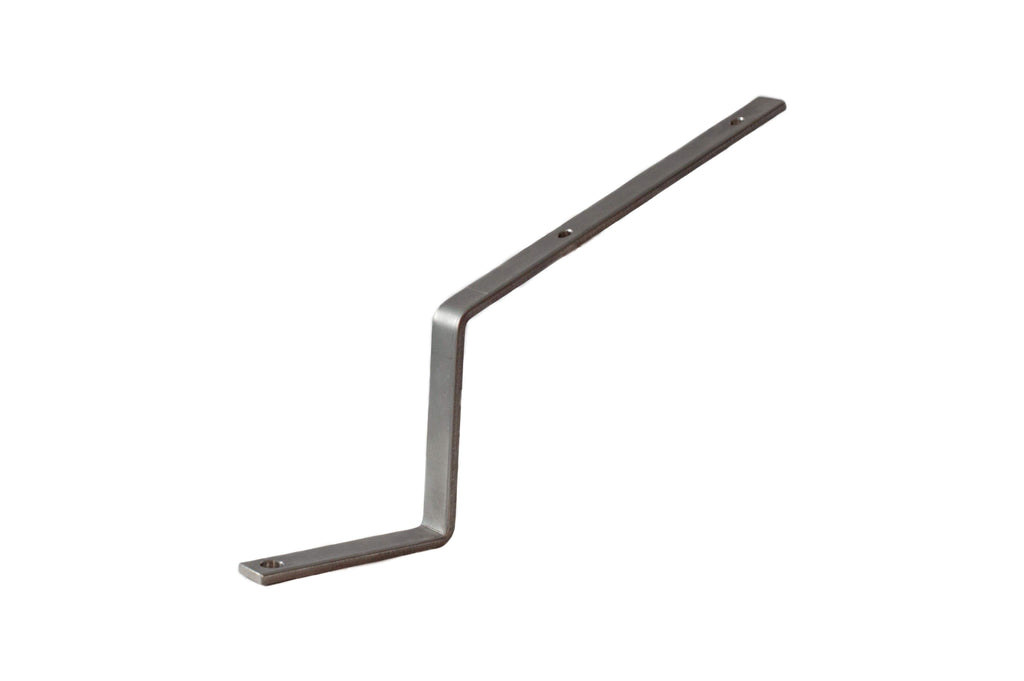

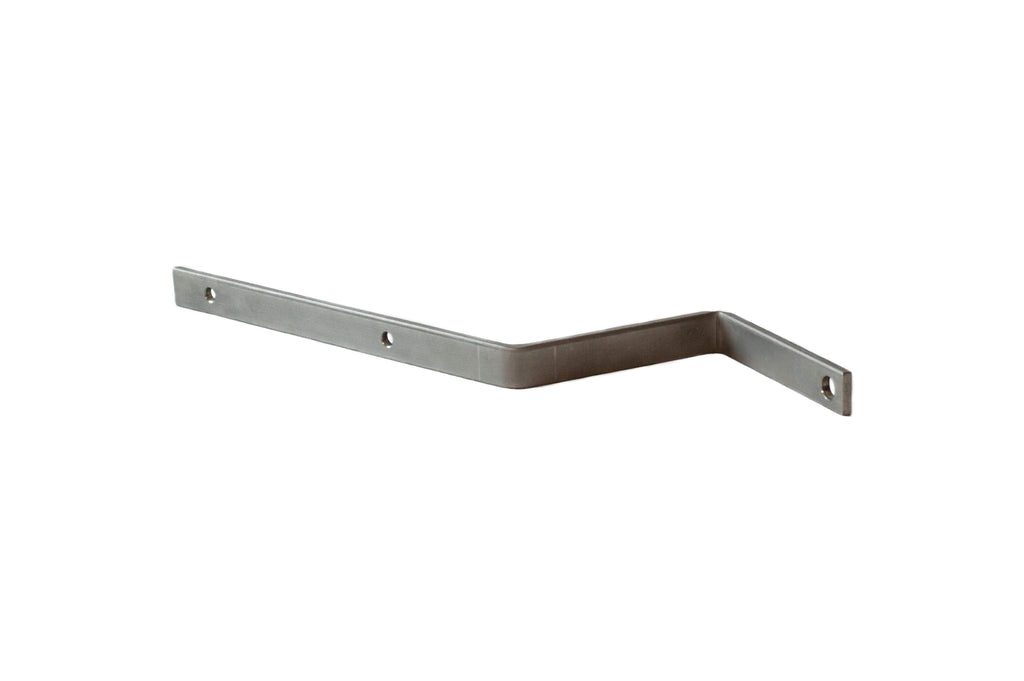

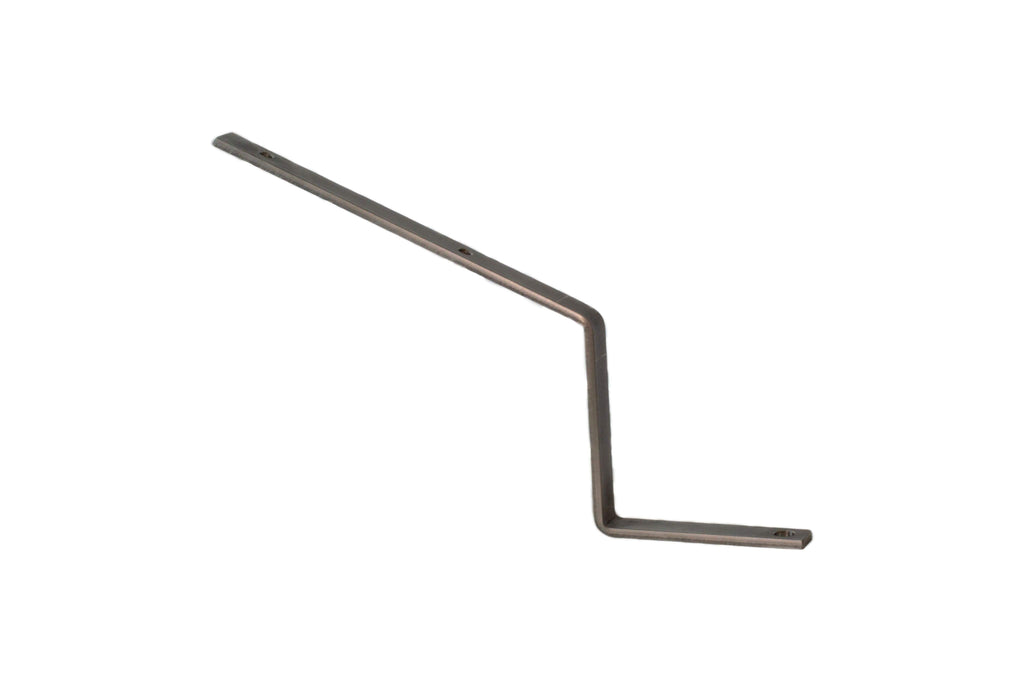

Top Rafter Arm For Rise & Fall Bracket (ARM ONLY)

This metal gutter bracket is part of our range of metal gutter brackets and this particular type is designed to fix to the top of a rafter.  Manufactured in the UK from marine grade 316L stainless steel this top rafter bracket offers unrivaled strength and durability.  If you are wanting to use these with cups made from plastic, zinc, aluminium or cast iron effect gutters, please speak to your guttering supplier concerning any potential reaction between the materials.

If you are looking to support your guttering for decades to come then this top rafter bracket is for you.  It is designed to fix to the side of your rafter and supports your rainwater goods using a rise and fall cup.  For cast iron guttering, it would be good practice to have a bracket every 900mm (3') or wherever the guttering is sagging.

The arm is produced from 5mm x 20mm 316L stainless steel and is angled at 25 degrees.  The arm length is approximately 220mm and has two fixing points.  The drop is 100mm and the projection is 90mm to the hole centre.

This is a quality UK manufactured bracket which is produced from 316L stainless steel providing unrivaled longevity and excellent strength in all weather.  You should use stainless steel fixings with these brackets.

Stainless steel is used because of the corrosion resistance in a wide variety of service environments, usually without additional coatings. In certain circumstances, however, stainless steel components may require a coated (paint) finish so if you are intending to paint these, please ensure that you use the correct primer or your paint will not stick.  There are a number of metal paint products available including Hammerite 'Special Metals Primer' which will promote adhesion to stainless steel.
