Side Rafter Rise & Fall Bracket Arm

Rise & Fall Side Rafter In 316 Stainless Steel (Arm Only)

£17.25

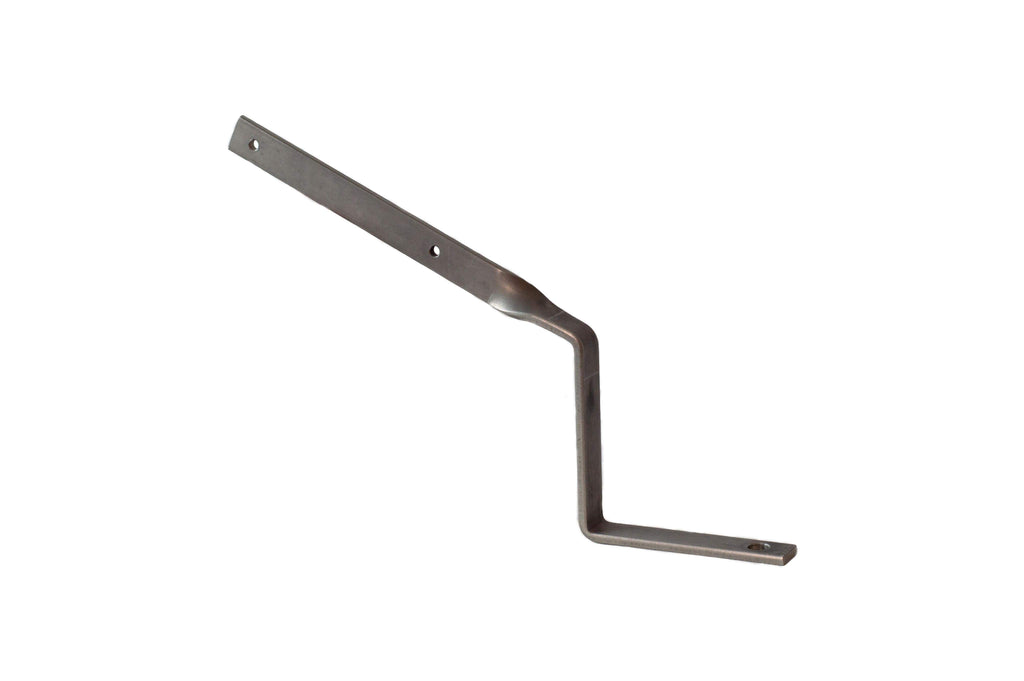

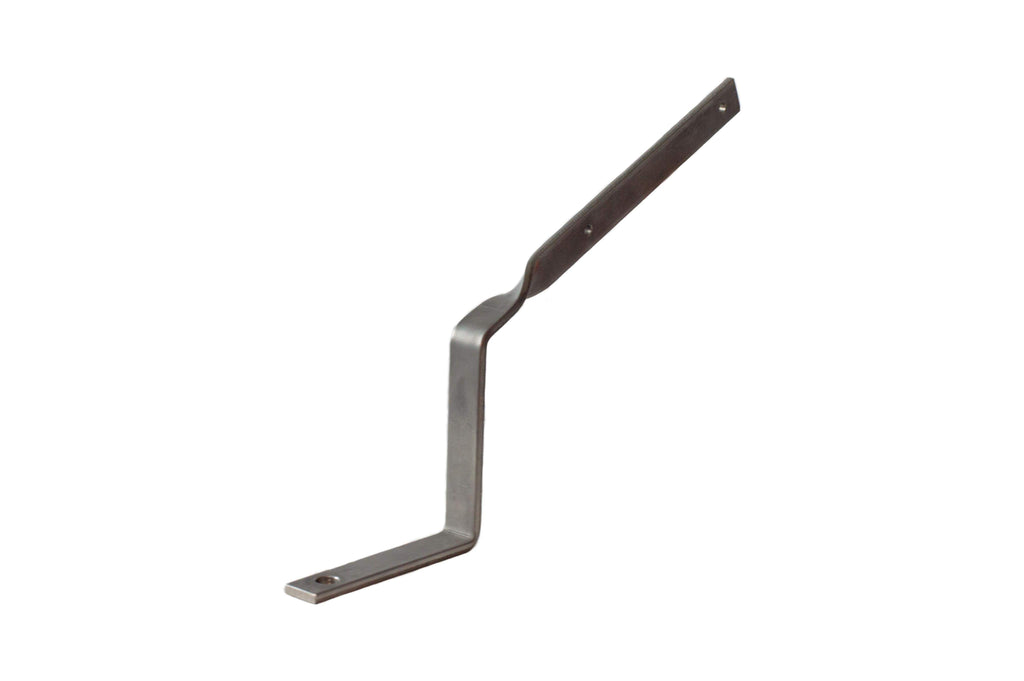

Side Rafter Arm For Rise & Fall Bracket (ARM ONLY)

This metal gutter bracket is part of our range of metal gutter brackets and this particular type is designed to fix to the side of a rafter.  Manufactured in the UK from marine grade 316L stainless steel this side rafter bracket offers unrivaled strength and durability.  If you are wanting to use these with cups made from plastic, zinc, aluminium or cast iron effect gutters, please speak to your guttering supplier concerning any potential reaction between the materials.

If you are looking to support your guttering for decades to come then this side rafter bracket is for you.  It is designed to fix to the side of your rafter and supports your rainwater goods using a rise and fall cup.  For cast iron guttering, it would be good practice to have a bracket every 900mm (3') or wherever the guttering is sagging.

The arm is produced from 5mm x 20mm 316L stainless steel and is angled at 25 degrees.  The arm length is approximately 220mm and has two fixing points.  The drop is 100mm and the projection is 90mm to the hole centre.



This is a quality UK manufactured bracket which is produced from 316L stainless steel providing unrivaled longevity and excellent strength in all weather.  You should use stainless steel fixings with these brackets.



These particular gutter repair brackets are manufactured from a 316 stainless steel to provide superb weather resistance and increased lifespan.  Whilst they are likely to be more expensive, they offer a whole life cost which is significantly lower than lesser performing imported products.

If you have any questions please feel free to ask prior to purchasing.
